HearthStone Wood Stove Parts

HearthStone Tula Replacement Glass

HearthStone Tula Wood Stove Replacement Glass This glass is for use on the below models: HearthStone Tula 8190  HearthStone Tula 8191  Includes: Ceramic Glass with Gasket Before You Begin: Work on a cool stove.  ...

Craftsbury Door Latch 93-73900

HearthStone Craftsbury Front Door Latch Kit Part # 93-73900 For use with the below Hearthstone Stoves: Craftsbury 8390 Craftsbury 8391 Includes: Set Screw (4) Spacer Chrome Crank Front Door Latch Washer          ...

Hearthstone Homestead Extended Oval Adaptor

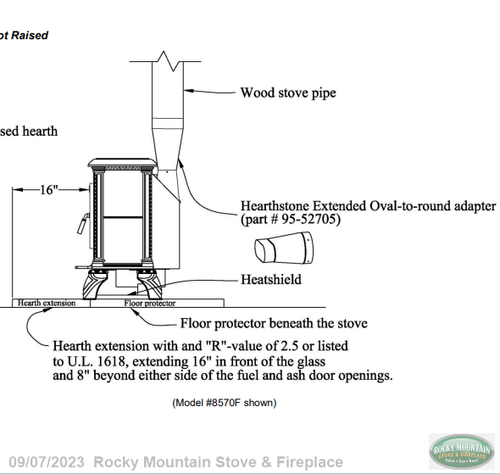

HearthStone Homestead Extended Oval Flue Adapter OEM Hearthstone Part #95-52705     -      3.5" x 7" Oval    to   6" round:   10.5" Long This adapter is designed for use with the...

Hearthstone HII Grate

Hearthstone HII Wood Stove Ash Grate #2211-28     Measures: 15 1/8" x 9 1/8" This ash grate is for use on the below models Hearthstone H-II (H-2) Hearthstone II   Cast iron ash grates can warp with time, this...

Craftsbury Replacement AshPan 5390-010

Hearthstone Craftsbury Replacement Ash Pan 5390-010 Hearthstone Craftsbury wood stove replacement ash pan, #22 in the above picture

Hearthstone Castleton Baffle 90-76300

Hearthstone Castleton 8030 Wood Stove   -  Replacement Baffle #90-76300 Includes:  1 – #3120-330: Ceramic Baffle Board     15" x 10-1/2" x 1/2"1 – #5021-066: Baffle Bracket 2 –...

Heritage Ceramic Baffle Kit #90-76230

Ceramic Baffle Replacement Kit   -   HearthStone Heritage Wood Stove This is a OEM Hearthstone part:  This item replaces the older version #90-76210 and #90-76220 baffles. For use on the below Heritage Wood Stove...

Mansfield Upper Ash Grate 2010-160

HearthStone Mansfield Wood Stove  -  Upper Ash Grate Hearthstone Part # 2010-160     -      11.25" x 7.25"  Cast Iron Grate  Hearthstone Mansfield Upper Ash Grate, designed for use with:...

Equinox Side Door Lock 90-70200

HearthStone Equinox Wood Stove  -  Side Door Lock Kit # 90-70200   Replaces side door latch/handle with mechanical closure to disallow opening of side door. Reduces minimum clearance to combustibles on side with door.

HearthStone Morgan Replacement Baffle #3120-470

HearthStone Morgan Wood Burning Fireplace Insert  -   Replacement Baffle Hearthstone 3120-470 Designed to be used with the Morgan 8470 Wood Inserts only. Measurements: 17 1/8" x 10 1/8"

Tribute 90-85410 Outer Front Frame

HearthStone Tribute 8040 Wood Stove   -   Cast Front Outer Frame Replaces Old Front Frame # 2010-440 This the matte black cast iron frame that the front door, hinges on and latches on to. The new and improved design uses a small steel...

HearthStone Homestead Ash Grate 2510-730

HearthStone Homestead Wood Stove  -  Cast Iron Upper Ash Grate Genuine OEM Hearthstone Part # 2510-730     -    Measures 9.125"  Designed for use with below models only: HearthStone Homestead 8570 Wood Stove...

Heritage 8022 Side Door Spring 5240-143

Hearthstone Heritage 8022 Side Door Torsion Spring #5240-143 PROCEDURE: 1 Remove the setscrew below the side door with a 5/32” Allen wrench as shown in photo 1 2 Open the door and support it in the full open position as shown in photo number 2 3...

Hearthstone Manchester Replacement Glass 93-58300

HearthStone Manchester Wood Stove   -  Replacement Glass Kit #93-58300 For use on the below models: HearthStone Manchester      8360 HearthStone Manchester I   8361 HearthStone Manchester...

HearthStone 4.5" x 9" SoapStone Brick

HearthStone    4.5" x 9" x ≈1.25" SoapStone Brick 1-0000-101 Replaces  #000-101  and 1-0400-101 This brick is a un-polished 4.5" x 9" x ≈1.25" soapstone brick for the floor or walls of the firebox on many of the...

Equinox Wood Stove Door Latch Kit 90-73010

Hearthstone Equinox Wood Stove (Model 8000)  -  Door Latch Kit 90-73010 90-73010 Complete OEM Hearthstone door latch kit for the below model: Hearthstone Equinox Front Door Hearthstone Equinox Side Door INCLUDED IN KIT: 5000-322: Latch...

Equinox Baffle Support 5000-401

HearthStone Equinox Wood Stove Baffle Support The Baffle Support is located on top of and behind the front air tube in the stove. The Ceramic Baffle with rest on top of the Baffle Support Designed for use with the below model: HearthStone Equinox...

Craftsbury Replacement Glass 93-58905

HearthStone Craftsbury Wood Stove Replacement Glass #93-58905 For use on the Below Model Only Craftsbury 8390 Wood Stove Craftsbury 8391 Wood Stove Includes : 3110-053: 4 Feet 3/16” Gasket 3030-047: (1) Glass 5021-060: (3) Glass...

3" to 4" Outside Air Increaser

Outside Air Ducting   -   3" to 4'' Increaser Hearthstone 90-53308 Allows for a 4" outside air vent to be connected to a 3" Outside Air Adapter, both sold separately. For use with the below units Hearthstone Castleton...

HearthStone Mansfield Gasket Kit 90-57001

HearthStone Mansfield Wood Stoves   -   90-57001 Gasket  Kit For use on the below HearthStone models: Mansfield 8010 Wood Stove Mansfield 8011 Wood Stove Mansfield 8012 Wood Stove Hearthstone 90-57001: GASKET KIT...

StoneGard Stove Top Thermometer

StoneGard Stove Top Thermometer Locate StoneGard Thermometer on top of your soapstone stove – in the center of the top stone. Soapstone stoves are engineered so that their ideal operating surface temperatures are less hot than steel or cast-iron...

Hearthstone Firebox Side Casting 2010-257

Hearthstone Heritage I Wood Stove (Model 8021)   -   Inner Cast Iron Side Frame 2010-257

HearthStone 2310-617 Cast Door Crank

HearthStone 2310-619 Cast Iron Door Crank Designed for use with: Clydesdale 8491 Wood Insert   Front Door Crank Clydesdale 8491 Wood Insert   Front Door Crank Manchester 8360 Wood Stove   Front and Side Door...

HearthStone 4.5" x 7.5" SoapStone Brick

HearthStone 4 1/2" x 7.5" x ≈1-1/4" SoapStone Brick 1-0000-001 This brick is a un-polished soapstone brick for use on the below models: Hearthstone Equinox  8000         (4 x Floor of the Firebox) Hearthstone...

Heritage 8021 Ash Pan 5021-010

HearthStone Heritage 8021 Wood Stove      Replacement Ash Pan #5021-010 Replacement Ash Pan for Hearth Stone Heritage 8021 Wood Stove The 5021-010 ash pan is 14"w X 10" d X 2" tall overall

Hearthstone Homestead Compact Oval Flue Adaptor

HearthStone Homestead Wood Stove    -  Compact Oval Flue Adapter 95-52710 Compact adapter for oval top exit on a Hearthstone Homestead  to standard 6" round single wall or double wall vent pipe, (3.5" x 7" Oval  x ...

Hearthstone Tribute Baffle Kit 90-76400

Hearthstone Tribute 8040 Wood Stove  -  Replacement Baffle Kit Part #90-76400 Kit Includes: 3120-040: Baffle Board 5021-066: Baffle Bracket 700-090: Stainless Steel Wire (cut into two 12" sections) BEFORE YOU BEGIN: The fire...

HearthStone Outside Air Adapter 93-53500

HearthStone Wood Stove 3" Outside Air Adapter OEM HearthStone Part 93-53500 includes: 5935-040 Airbox and instructions only (the 10-24 x 3/8" mounting screws should be factory installed on your stove) Allows an outside air supply to be...

Hearthstone H-I and H-II 90-58000 Damper Bushing

Hearthstone H-I and H-II Wood Stove  -  Damper Bushing Assembly 90-58000    Limited to Stock on Hand

HearthStone Phoenix Gasket Kit 96-58601

HearthStone Phoenix Wood Stove    -    Gasket Kit #96-58601 This gasket kit is designed for use with: Phoenix 8610 Phoenix 8611 Phoenix 8612  Gasket Kit 96-58601 includes: 3FT 1/4" gasket...

Hearthstone Homestead Lower Ash Grate

Hearthstone Homestead Lower Ash Grate   ( aka Ash Grate Frame )   Genuine OEM Hearthstone Part # 2510-720     -    Measures 10" x 10"    Designed for use with below models only:   HearthStone...

Craftsbury Ceramic Baffle 3120-390

Hearthstone Craftsbury Ceramic Baffle 3120-390      Measurements: 12-1/4" x 10-1/4" x 3/8" For use with the below models: Craftsbury    8390 Craftsbury I 8391 1. Locate the two nuts on the left and right side...

HearthStone Manchester Side SoapStone Brick

HearthStone Manchester Side Stone Brick 1-0000-304 SoapStone Side Brick for Hearthstone Manchester wood stove 4 7/8" x 12"          Please order 2 Bricks if you want to replace both side bricks For use on the below models of...

Craftsbury #3 Air Tube 5390-063

Hearthstone Craftsbury #3 Air Tube #5390-061 The #3 air tube is the front air tube on a Hearthstone Craftsbury wood burning stove. #34 in the above picture Special Order Item, 2-3 Weeks to Ship

Tribute Wood Stove Glass 90-58405

HearthStone Tribute Wood Stove Glass Kit For use on the below model:   Tribute Model 8040 Wood Stove Glass Kit #90-58405:  #3110-056 (5) Feet ¼” Gasket #3030-043 (1) Glass         ...

Hearthstone 90-54240 Ash Pan Kit

HearthStone Heritage & Mansfield Wood Stove - Optional Ashpan Kit Hearthstone 90-54240     Replaces Part #90-57220 This Ash Pan Kit is designed for use on the below Hearthstone stoves that do not come standard with an...

Hearthstone Replacement Blower Motor

Hearthstone Replacement Blower Motor  7100-1200 For use on the below models:  Bristol Gas Stove Castleton 8030 Wood Stove w/90-57210 Blower Castleton 8031 Wood Stove w/90-57210 Blower Green Mountain 40 Wood Stove Green Mountain 60 Wood...

Heritage Side Impact Plate 2010-422

Hearthstone Heritage Side Impact Plate 2010-422 Compatible with the Below Models of Hearthstone Only Heritage 8020 wood stoves  Heritage 8021 wood stoves  Steel plate on the opposite side of the stove from the load door that help...

Bennington Ash Door Latch 93-73506

Hearthstone Bennington Ash Door Latch Kit 93-73506 PROCEDURE: 1) Remove and discard the ash door latch assembly by loosening the setscrew(s). 2) Install the new latch assembly as shown below. Start out with one spacer on the inside of the door. The...

HearthStone 94-73910 Door Latch

Hearthstone Latch Kit  -  94-73910   For use on the Front Door of: HearthStone Clydesdale 8491 HearthStone Clydesdale 8492 For use on the Side Door of: HearthStone Manchester 8360 HearthStone Manchester...

Hearthstone Tula Brick Set

Hearthstone Tula Replacement Brick Set For use with the below models only: HearthStone Tula 8190  HearthStone Tula 8191  VERMICULITE PANEL REMOVAL OR REPLACEMENT Hearthstone expects the refractory panels to have a useful life of about...

Hearthstone Shelburne Door Latch 93-73701

Front Door Latch for Hearthstone Shelburne  Part# 93-73701 For use on the below Models: Hearthstone Shelburne 8370 Hearthstone Shelburne 8371 Front Door Latch Assembly Includes (1) 4500-2975 Set Screw (4) 4700-0790 Brass Spacer Washers...

Hearthstone 3120-210 Ceramic Blanket

Hearthstone Wood Stove  -  Ceramic Baffle Blanket OEM Hearthstone Part   #3120-210    12" x 25" x 1/4"  For use on the below Hearthstone stoves: Heritage 8020 Wood Stove Pheonix 8611 Wood Stove Pheonix 8612...

Hearthstone Bennington AshPan 5350-010

Hearthstone Bennington Replacement Ash Pan 5350-010     OEM Hearthstone Parts     16.375" x 11.688" ASH PAN: The ash pan is located under the ash lip. The ash pan collects burned ash from a fire and mallows you to...

Hearthstone Manchester Close Clearance Heat Shield

HearthStone Manchester Close Clearance Heat Shield Hearthstone #93-68600   For use on the below Hearthstone models:  Manchester        8360   Manchester I     8361   Manchester...

Hearthstone HI 91-58141 Side Plate Replacement

Hearthstone HI   -    Side Burn Plate Replacement 91-58141 ASSEMBLY CONTENTS:  Side Plate        13.5"  x 8.75"         (Center to Center of the...

HearthStone Wood Handle 90-71100

Hearthstone Wood Stoves - Wooden Door Handle Part # 90-71100 Wooden Handle Assembly Includes: Wood Handle    3900-177 1/4-20 x 3 1/4" Bolt (2) 1/4" Lock Washer For use on the following Hearthstone...

Homestead Locking Bracket 5570-130

Hearthstone Homestead Wood Stove   -   Secondary Air Pipes Locking Bracket 5570-130 10 1/4" x 3/8" Stainless steel bar that locks the secondary air tubes together in a Hearthstone Homestead 8570 wood stove.

Hearthstone Ash Grate 2010-219

Hearthstone   2010-219   Replacement Upper Ash Grate OEM Hearthstone Part   This Replacement part is only used on the below models of stoves that have added the Ash Pan Kit Hearthstone Heritage 8022 Hearthstone Heritage...

Equinox Blower Kit 90-57502

HearthStone Equinox Wood Stove Blower Kit # 90-57502 Stove mounted fan to move room air past heated stove body and into living space. When installing the blower on the Equinox, it must be used in conjunction with the rear heat shield accessory...
