Product Description
Jotul F 500 Oslo Wood Stove - Complete Air Chamber Kit
#154257

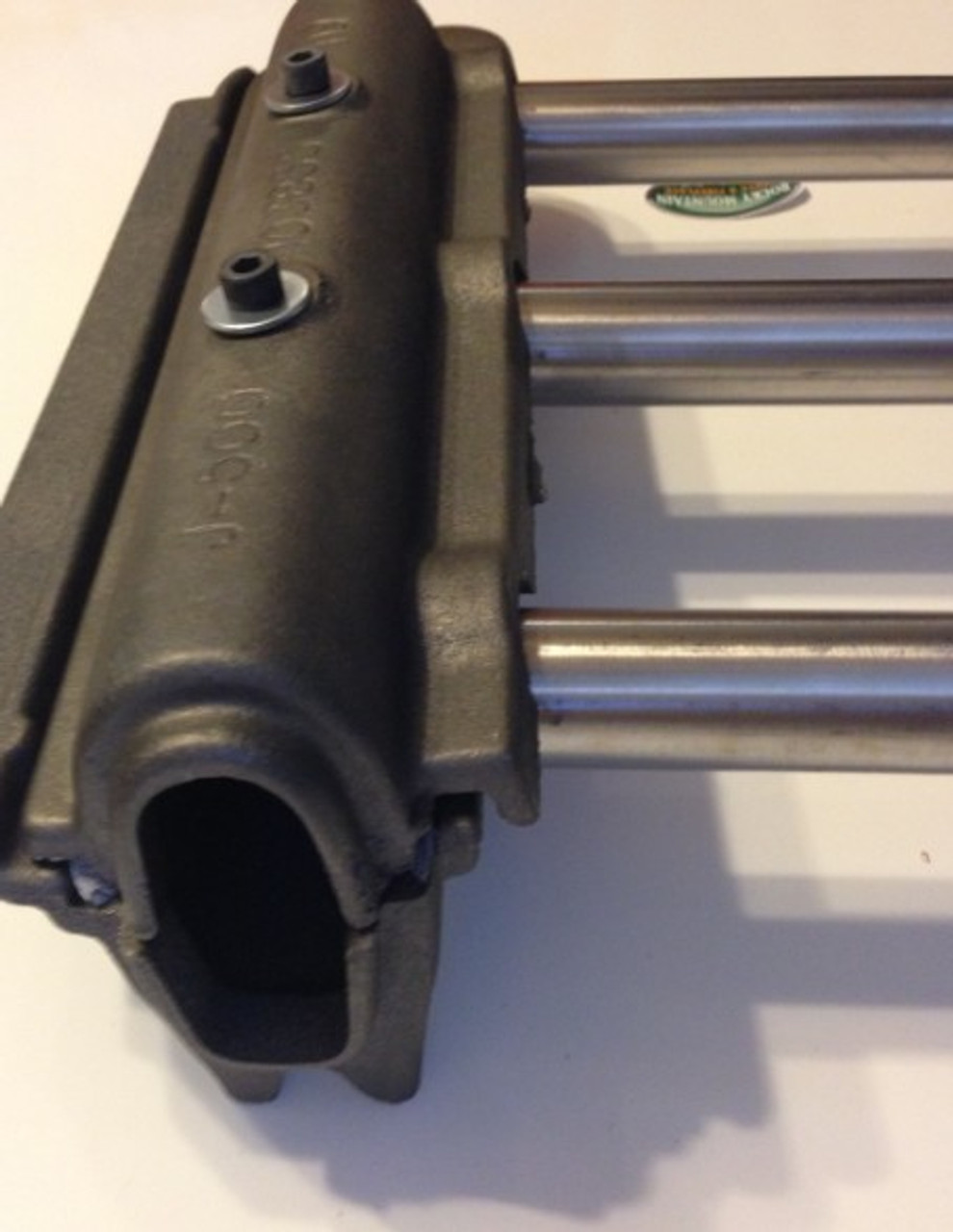

Jotul F500 Oslo Wood Stove Complete Air Chamber
Includes:
Rear Air Tube 129084
Middle Air Tube 129085
Front Air Tube 129085
Left side manifold
Right side manifold
Installation instruction:
1. Remove the top of the stove by removing the three top bolts with a 10 mm socket. The front two can be removed by reaching in thought the front door in-between the baffle and the front casting of the stove. To remove the back bolt you will need to disconnect the flue pipe and reach in though the flue collar to access the rear bolt. (see RED ARROWS in picture above to help locate three bolts locations)
Carefully lift the top off of the stove and set aside
2. Carefully remove insulation blanket
3. Remove Baffle
4. Remove and Replace Complete Air Chamber Kit
5. Replace baffle
6. Reinstall insulation blanket, replace if needed Jotul F500 Oslo Insulating Blanket 1290835
7. Inspect gasket on the bottom side of the top casting before reinstalling, replace if needed Gasket Kit 157050
8. Reinstall top of stove
9. Re-connect venting
