Product Description

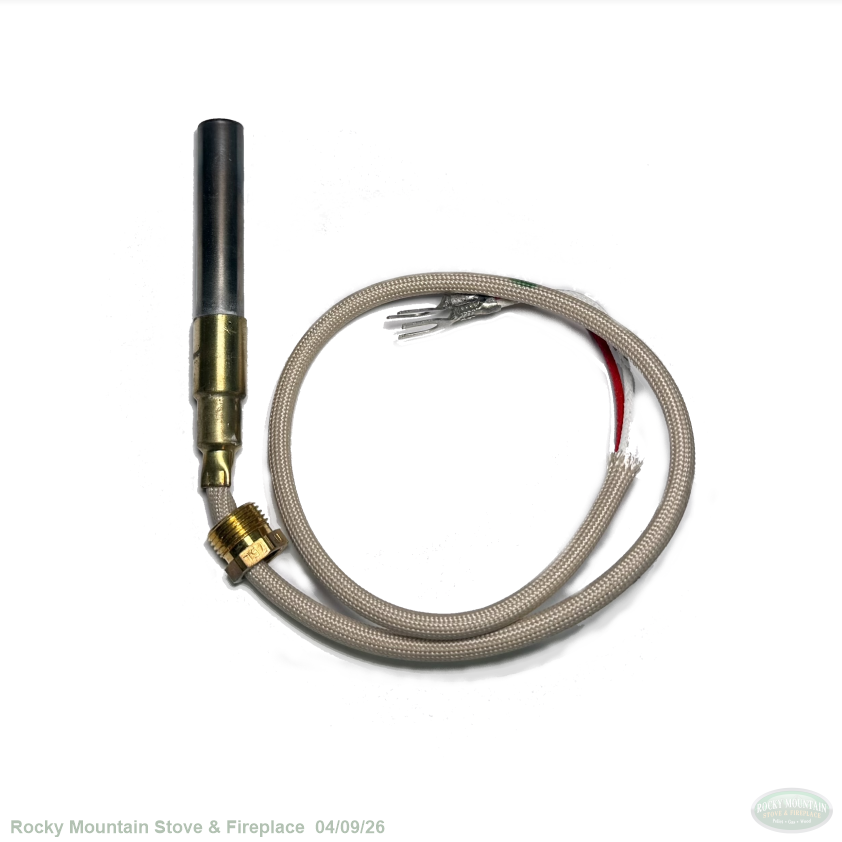

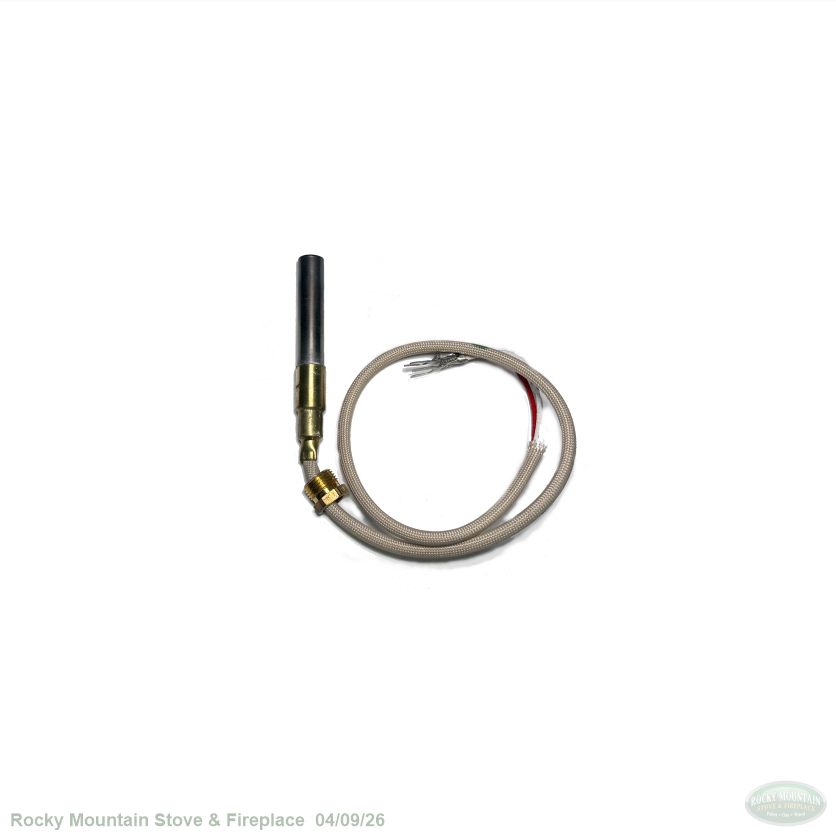

RobertShaw Thermopile 1950-518
Thermo-generator or Thermo-pile - generates 750 millivolts to operate Robert Shaw control valve. Mounts in most Robertshaw and SIT pilot assemblies
18" Total Length (Includes 15" of Wire Pigtail)
Robertshaw® thermopiles are the industry leader for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output. Robertshaw thermopiles have two types of connections: coaxial and two-wire spade connectors.
The 1950 thermopiles, also known as TP-75, are two-wire spade connectors. The 1950 and 1951 Series Thermopiles (pilot generators) are designed for use on self-powered gas control systems. They can be used to replace similar competitive devices.
Features and Benefits:
- Easy burner installation with attached threaded nut
- Stainless steel outer jacket for long life and resistance to heat blistering
- Combination of copper and nickel alloys for good electrical conductivity
- Mica washer to insulate from shorting conditions
- Various lengths available for multiple applications
Avalon 98900752
Lopi 98900752
Regency 910-341
