Lopi Liberty Damper Slider 98900340

Product Description

Lopi Liberty Damper Slider 98900340

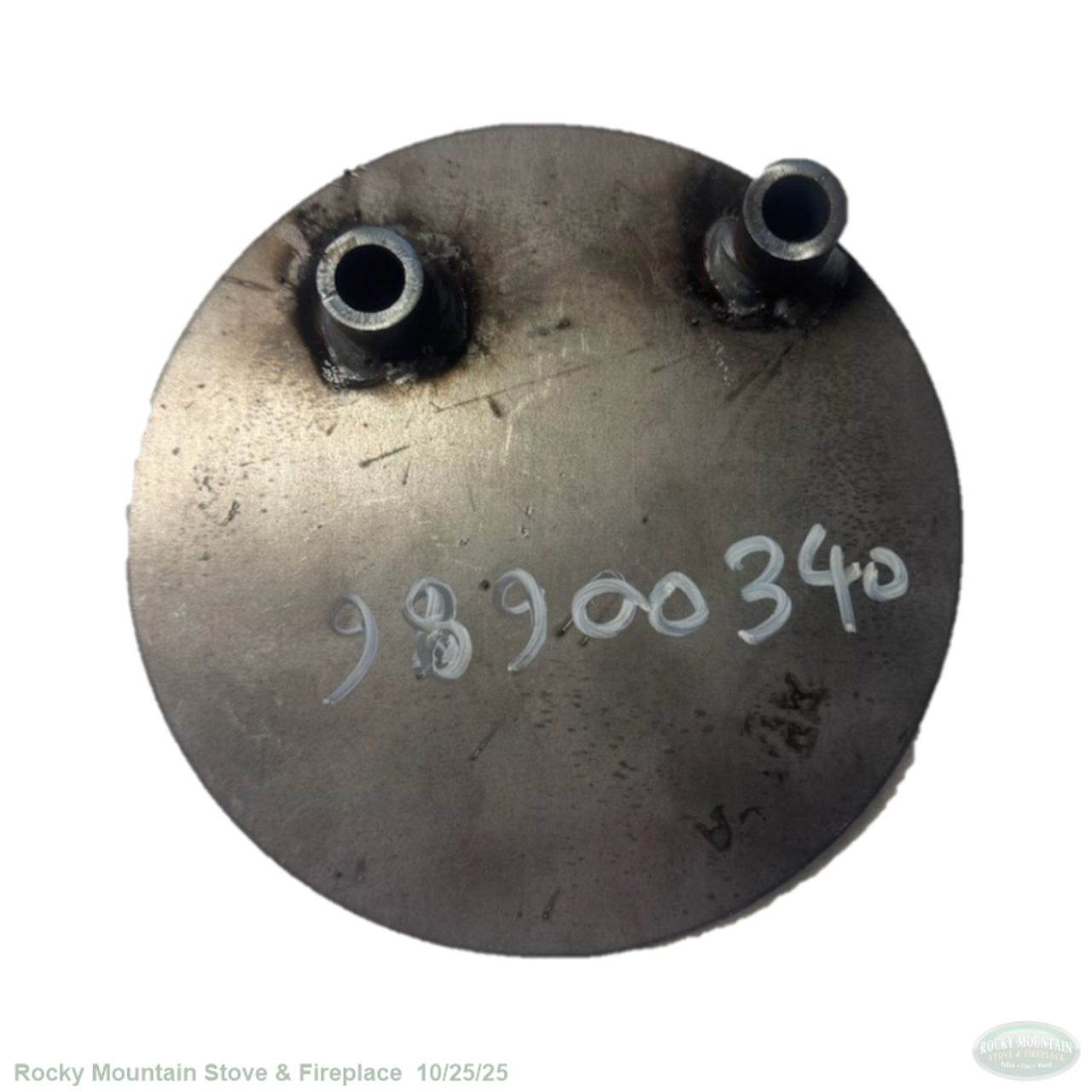

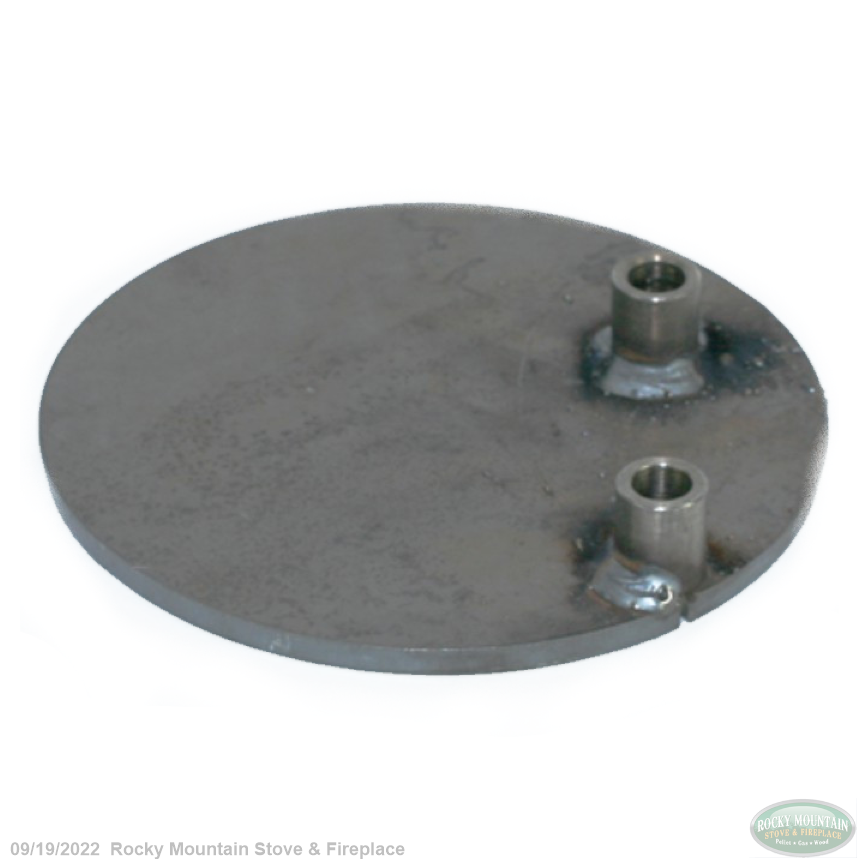

Bypass (Damper) slider plate, dimensions: Round, 6-11/16" diameter metal plate with 2 "off center" sockets

For use on the below Lopi model:

• Lopi Liberty wood stove built between 1994-2019

Removal & Replacement
1 Lift up on the front portion of the front three firebricks.
2 Lift the front baffle support “Y” and rotate it forward until it can be removed.
3 Slide the center front firebrick forward and out the door opening. Then slide the side front
firebricks towards the middle then out in the same manner.
4 Slide the center baffle support forward and out of the firebox.
5 Slide the rear firebrick forward and out of the firebox. NOTE: When the center rear firebrick is slid
forward the damper plate will come to rest on the rear secondary air tube and rear air channel.
6 Slide the damper slider all the way forward.
7 Reach into the firebox and push up on the damper yoke until the damper yoke separates from the
damper slider. Remove both the damper slider and damper plate by sliding them between the
front two secondary air tubes.

8 Place the damper plate above the secondary air tubes in the rear center of the firebox.
9 Position the damper slider so the damper yoke inserts into the two tubes on the damper slider
(make sure to have correct orientation). Then slide the damper slider over the damper plate until
both are centered in the firebox.
10 Follow the instructions above in reverse order, starting with step number 5
