Product Description
Avalon & Lopi Small Pellet Stove & Inserts
Ignitor assembly for small pellet stoves and inserts starting with 1997 models. This ignitor is different from the earlier 1993-96 version because the mounting screw hole is on the right side of the mounting plate, not on the top.
Manufactured by: Travis Industries (Lopi/Avalon/FPX) in Mukilteo Washington USA
COMPATIBILITY:
- Avanti Pellet Stove
- Avanti Pellet Insert
- Heritage Pellet Stove
- Heritage Pellet Insert
- Newport Pellet Stove
- Newport Bay Pellet Insert
- Pioneer Pellet Stove
- Pioneer Bay Pellet Insert
INSTALLATION INSTRUCTIONS:
Warning: Disconnect the power cord and allow the heater to cool prior to conducting service.Stoves
Free Standing Stoves
Open the right-side panel. then Remove the rear access panel.
Inserts
Disconnect the pellet vent and pull the insert out of the fireplace enough to access the rear of the insert.

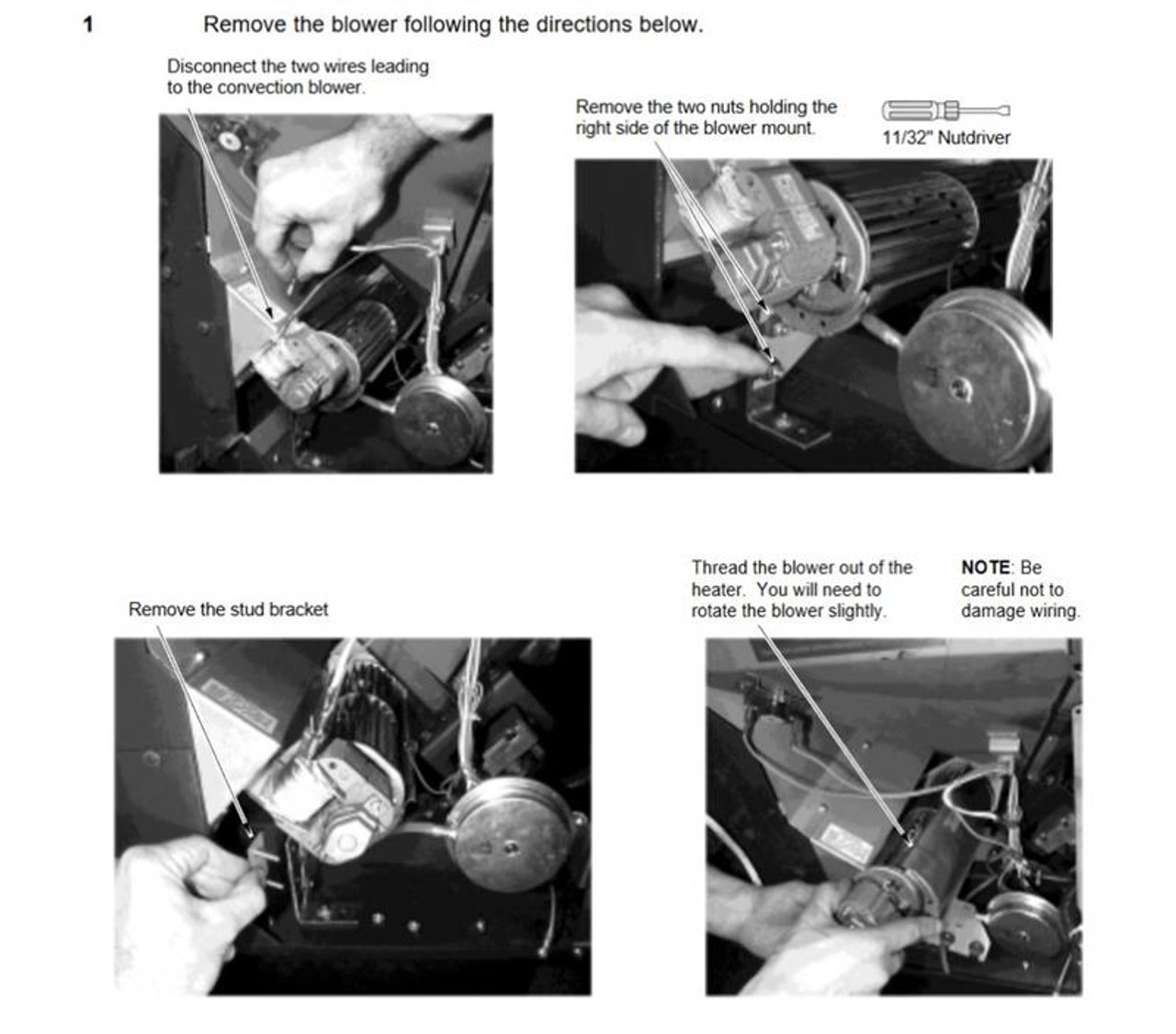

1. Remove the Convection blower
2. Remove the Igniter.
3. Place the new igniter in place and attach it using the screw removed in step 2.
Open the right-side panel. then Remove the rear access panel.
Inserts
Disconnect the pellet vent and pull the insert out of the fireplace enough to access the rear of the insert.
1. Remove the Convection blower
2. Remove the Igniter.
3. Place the new igniter in place and attach it using the screw removed in step 2.
4. Re-install the blower, following the instructions in step 1 in reverse order. Be careful to not snag or damage wiring while installing.
