Jotul F602 Air Chamber 153338 (Baffle)

Product Description

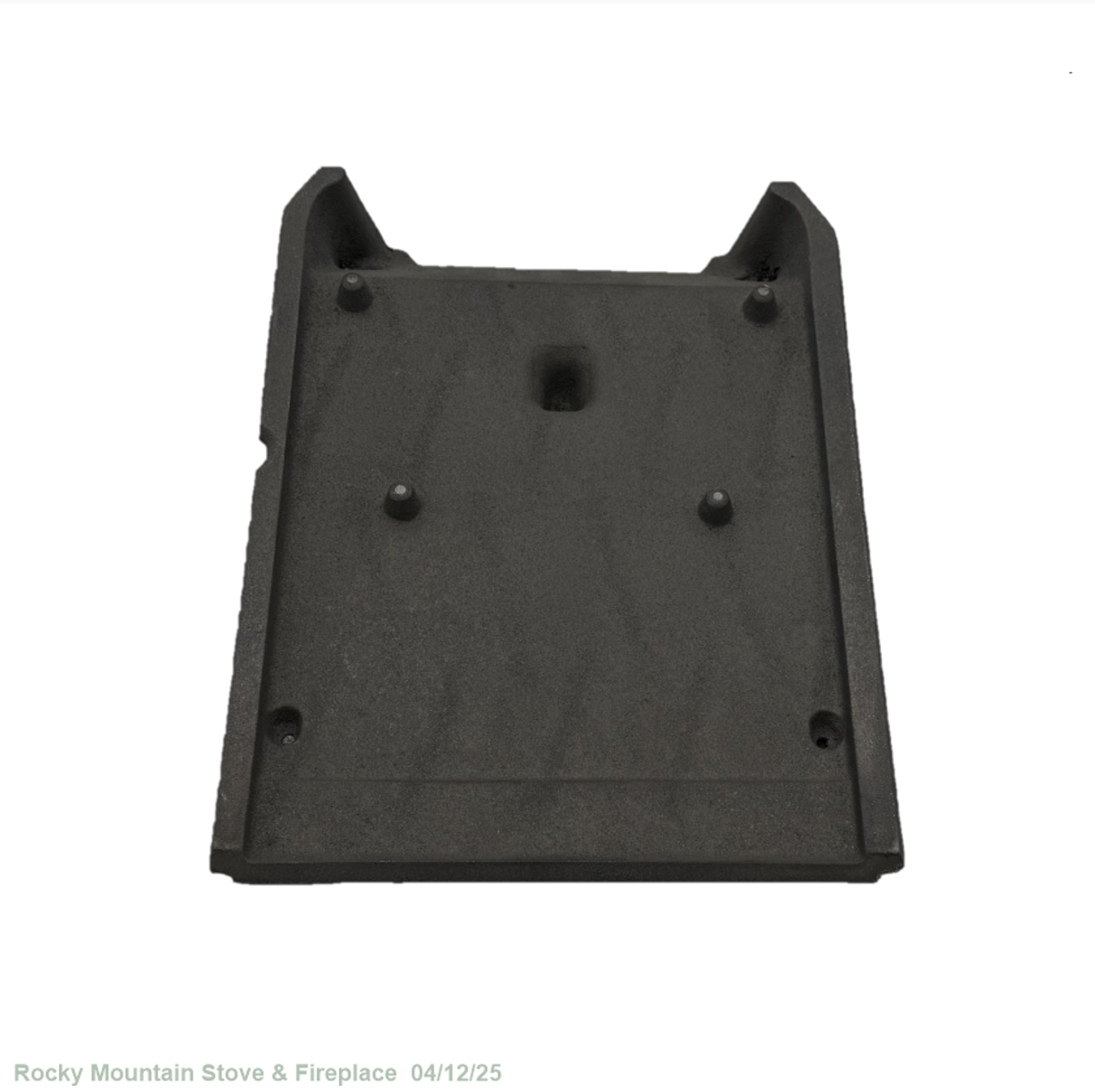

Jotul F 602 CB Wood Stove  2019 & Older Stoves -  Complete Air Chamber (Baffle)
AKA 153338  -  103461  -  101319    AKA Top Baffle or Secondary Air Chamber

For use on the Jotul F 602 CB and F 602 N wood stoves only  - Measures 10.5" wide X 14" long X 3" tall

THIS ITEM IS NOT EASY TO INSTALL Please read below

Remove Side Burnplates: The Side Burnplates are held up into position by the L-shaped Bottom Burnplates, To remove the side plates, from the bottom center of your stove's firebox, pry up one of the Bottom Burnplates. Once the bottom of the Bottom Burnplate is pulled up and out a little bit the side of the Bottom Burnplate will drop down allowing the Side Burnplate to drop down and be removed.

Remove Top Casting: Remove the cookplate, Reach inside the cookplate opening to unbolt the 4 bolts holding the top casting to the side castings (see picture).

Remove Rear burnplate: Remove center bolt in the rear burnplate (see attached picture), The rear burn plate may be cemented to the rear casting on the stove so you may need to chip the cement away before pulling the rear burn plate out.

Remove the Baffle: Remove the two bolts in the rear of the baffle that hold the baffle to the rear casting. the baffle maybe cemented into the stove so you may need to chip out the cement before removing the baffle

Before Re-Assembly: clean all surfaces and apply new cement as you re-assemble the stove

Re-assemble stove by reversing above steps

You may need Cement to sear the piece of the stove, Please order a couple #77 https://www.rockymountainstove.com/rutland-hi-temp-stove-gasket-cement/
