Product Description

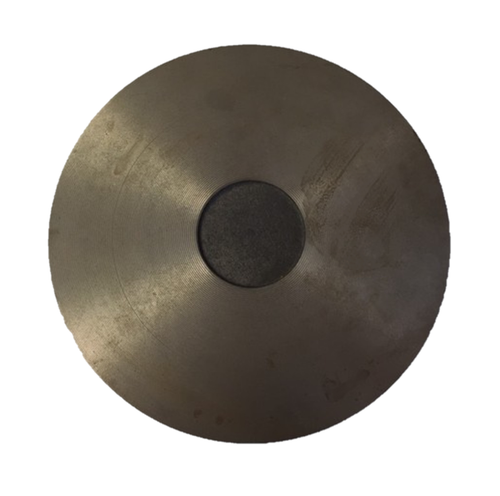

Jotul F 500 CB Oslo Wood Stove - Cook Plate
155560 17.25" x 8.675"
Milled steel surface to quickly turn the top of your Jotul F 500 Oslo into a durably cooking surface.
Designed for the following Jotul Wood stoves
155560 17.25" x 8.675"
Milled steel surface to quickly turn the top of your Jotul F 500 Oslo into a durably cooking surface.
Designed for the following Jotul Wood stoves
- Jotul F 500 Wood Stove
- Jotul F 500 V2 Wood Stove
- Jotul F 500 V3 Wood Stove
F 500 /F 500V2 Installation Instruction:
1. Remove the top of the stove by removing the three top bolts with a 10 mm socket. The front two can be removed by reaching in thought the front door in-between the baffle and the front casting of the stove. To remove the back bolt you will need to disconnect the flue pipe and reach in though the flue collar to access the rear bolt. Carefully lift the top off of the stove and set aside
2. Remove center oval old painted or enameled cookplate from the top casting and install the new one
3. Reinstall top of stove
4. Re-connect venting
1. Remove the top of the stove by removing the three top bolts with a 10 mm socket. The front two can be removed by reaching in thought the front door in-between the baffle and the front casting of the stove. To remove the back bolt you will need to disconnect the flue pipe and reach in though the flue collar to access the rear bolt. Carefully lift the top off of the stove and set aside
2. Remove center oval old painted or enameled cookplate from the top casting and install the new one
3. Reinstall top of stove
4. Re-connect venting
F 500 V3 Installation Note: After step 1. in the above list you will need to remove the two set screws in the side of the stove with a 3mm hex key
