Jotul F3CB Right Side Burn Plate

Product Description

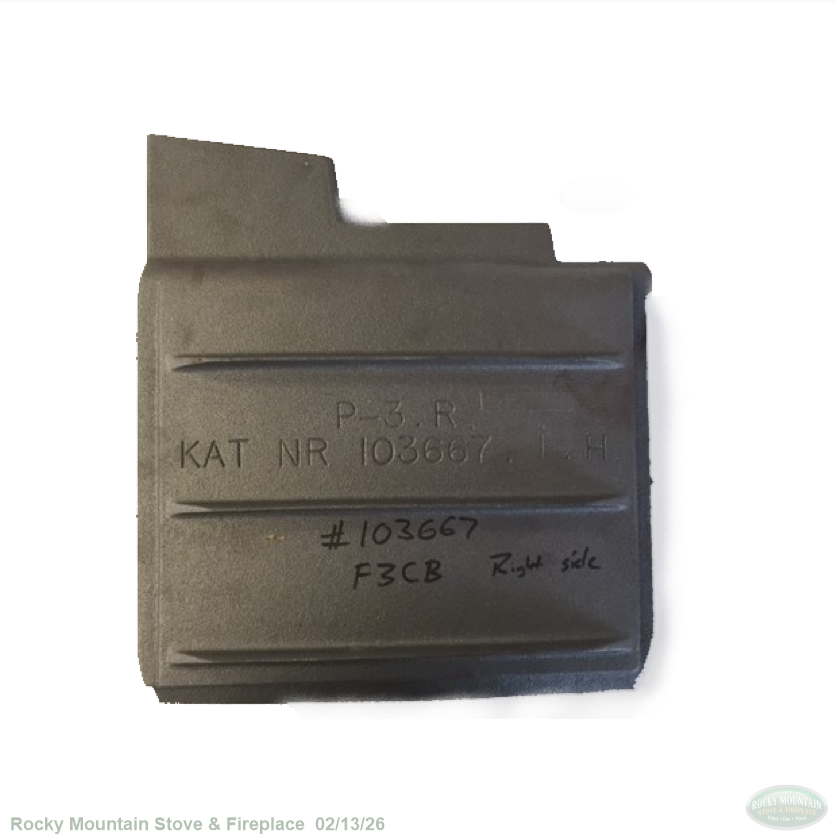

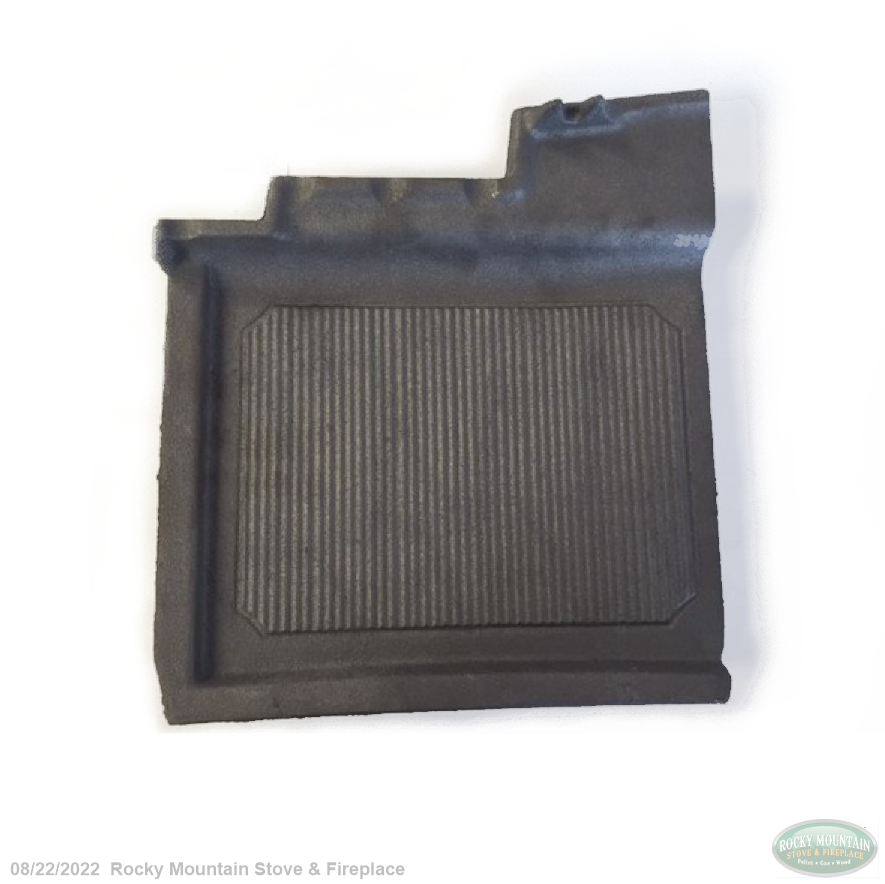

Jotul F3CB Wood Stove  -  Inner Right Side Cast Iron Burn Plate
OEM Jotul  Part #103667   Measurements: 11 1/2" x 10 1/2"

Jotul F3CB wood stove replacement right side burn plate, part no: 103667. This burn plate may be suitable for older model Jotul stove also please consult your owners manual.

Installation of this item is NOT easy, please see below instruction before purchasing

Installation instruction:

Remove venting from the top of the stove if equip.
Remove the top of the stove by removing the top set screws on the underside of the top of the stove, Carefully lift the top off of the stove and set aside
Remove the two top bolts from the top front corners of the baffle
Remove the two rear bolts of the baffle (these bolts are located on the back of the stove, you will have to remove the heat shield from your stove if it is equip with one)
Remove the baffle
Remove the back and side burn plates from the inside of the firebox

Re-install the back and new side burn plates from the inside of the firebox.
Re-install the baffle and the bolts that hold it in
Re-install the top of your stove and the venting
