Jotul F 600 CB Firelight Wood Stove - Air Valve Rebuild Kit
#157678

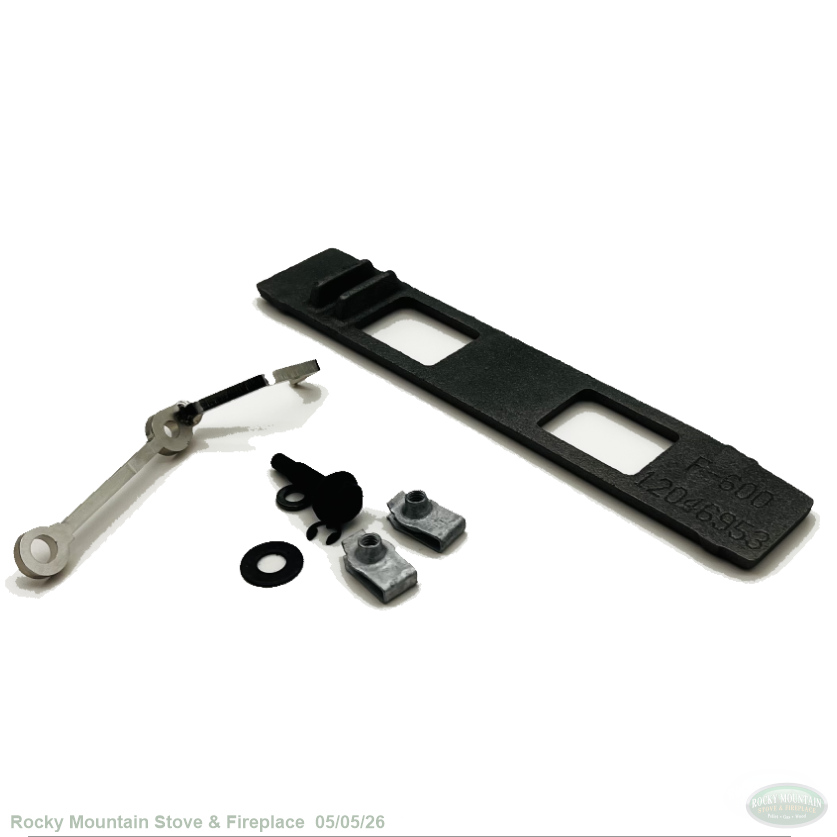

Includes Control Arm and Air Slider
Procedure:
1. Use the 10 mm wrench or socket to remove the two M6 bolts that secure the Air Valve Inspection Cover from the front of the stove firebox.
2. Lift the Ash Lip off of the stove front.
3. Open the ash compartment door and remove the ash pan.
4. The handle is secured by a pivot bolt at the front of the ash compartment. This may be a 6mm shoulder bolt or a M8 hex bolt. Use the appropriate tool to remove the pivot bolt and then remove the handle.
5. Remove the old air valve plate through the inspection opening within the stove.
6. Position the replacement air valve through the inspection opening, oriented with the cast print facing up on the left and the guide ribs on the right as shown in the pictures above.
7. Install the new pivot bolt from this kit. Install the M8 washer onto the new pivot bolt. Both stoves: Install the bolt only far enough until you see the end of it appear within the handle opening on the front of the stove.
8. Install the new handle through the front opening above the pivot bolt as shown in fig. 2. Rotate the handle as you install it so that, in its final position, the end of the handle tang engages within the two ribs on the valve plate. It is extremely tight but it is possible. Once the hook part of the lever is inside, the lever needs to be turned all the way to the left almost flat against where the ash lip sits and it will pop in.
9. Thread the pivot bolt all the way through the handle and use needle nose pliers to install the e-clip retainer onto the groove at the end of the bolt.
10. Replace the Air Inlet Cover using the original fasteners.
• Use the two U-clip nuts provided if the original bolt inserts are no longer available. Engage each clip over the bolt holes, oriented flat-side-up.
11. Re-install the ash pan and ash lip.
