Product Description
HearthStone Mansfield Wood Stove - Rear Heat Shield
This item is no longer available
This heat shield is designed for use on the below Hearthstone stoves
- Mansfield 8010
- Mansfield 8011
- Mansfield 8012
- Heritage Model 8020

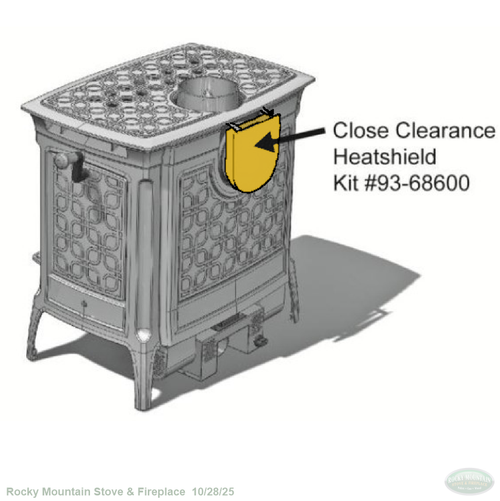

Rear mounted heat shield that reduces rear minimum clearance to combustibles.
It is not intended for use with the EPA exempt American Heritage previously manufactured by NHC Incorporated, nor the newer Heritage model 8021.
BEFORE YOU BEGIN:
Identify all the components in the kit. The bolts in the rear trim of the Mansfield are turned into threaded holes in the rear of the stove; the bolts in the Heritage are fastened with lock nuts located inside the firebox.
PROCEDURE:
1) Mansfield Only: Loosen the two screws in the trim steel located on the back of the Mansfield, but do not remove them. Just loosen them enough to allow the middle clip to slide between the trim steel and the bolt heads.
2) Heritage Only: If you are installing the heat shield on a Heritage, open the side loading door and place a 7/16” wrench or socket on the nuts that hold the rear trim steel bolts in place. Turn the heads of the screws on the back with a Phillips screwdriver until there is enough room to slide slots in the middle clip between the bolt heads and the trim steel (it is not necessary to fully remove the nuts).
3) With the middle clip in place, tighten the two screws. Loosely fit the ¼” x 3/8 screws into the holes on the face of the middle clip.
4) Locate the screws on the underside of the rear of the bottom casting and loosen the two outermost screws as shown in photo #1.
