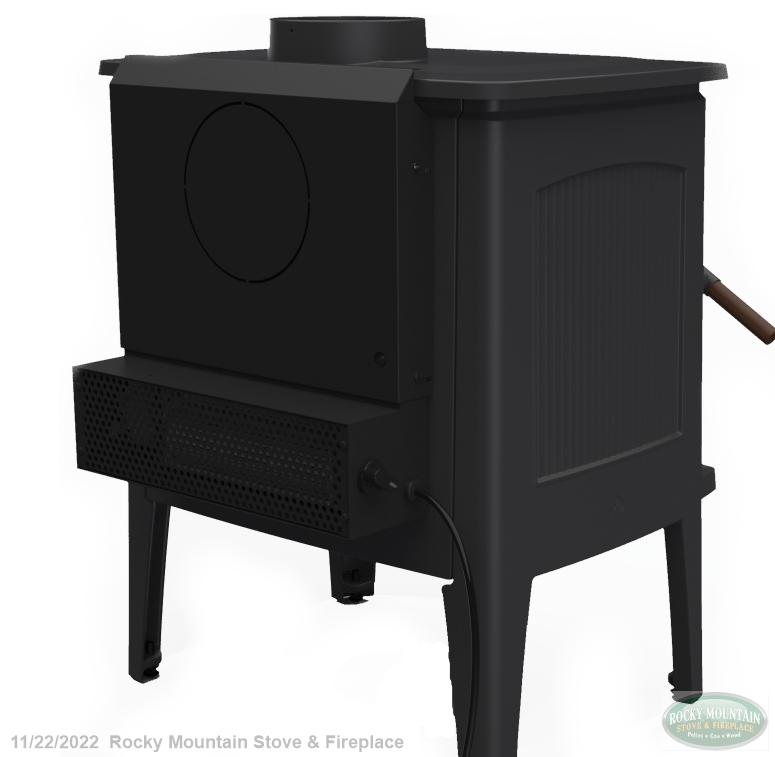

Hearthstone 96-57400 Blower / HeatShield Combo

Product Description

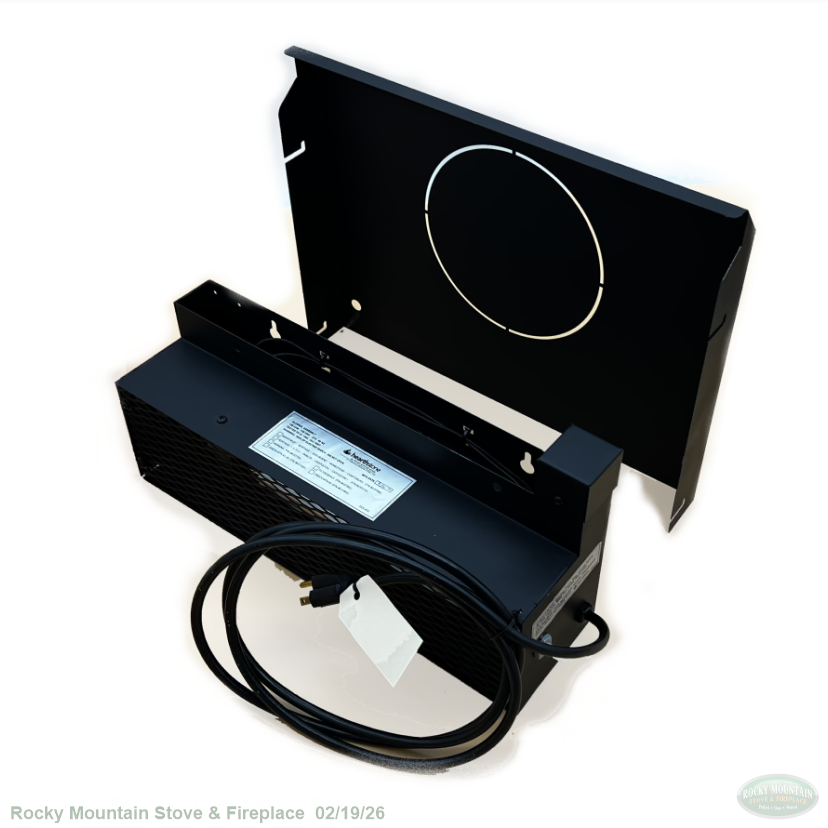

Hearthstone Wood Stove Blower / Heat Shield Kit Combo

Designed for use on the below Hearthstone Stoves:

• Green Mountain 40       8640     2019 and Newer
• Green Mountain 60       8660     2019 and Newer
• Craftsbury TruHybrid  8392     2021 and Newer
• Shelburne TruHybrid   8372     2021 and Newer
• Ambiance Hipster 20
• Ambiance Hipster 14

The 96-57400 Blower kit is a heat activated blower kit will help distribute heat throughout your living space. The blower is temperature activated; this works with an attached snap switch. Once the temperature of the stove reaches a set point of 120 degrees, the air blower will automatically turn on. Once the stoves temperature drops below 110 degrees, the unit will turn back off.

Instructions:

Before You Begin: Only work on a cool stove.

1) Loosen and remove the Phillips screws securing the flat rear shield to the stove
2) Discard the flat shield and spacers, and loosely re-install the Phillips screws
3) Install the blower assembly by inserting the screw heads through the “keyholes” in the fan housing and push the housing down the narrow part of the keyhole
4) Tighten the screws.
5) One at a time, remove the 7/16” hex bolts securing the catalyst access cover and place an “L” bracket under the screw head. The other leg of the bracket should face the outside of the stove. Tighten the bolts

6) Using four #8-32 Phillips screws, attach the rear heat-shield over the blower assembly and the “L” brackets

This blower includes:

Knob: 7200-602
Rheostat: 7200-601
SnapStat: 7000-300
Blower motor: 7100-1300
