Product Description
Avalon / Lopi / FPX Flush Wood Plus - Stainless Steel Airtube Kit
#98900243
Designed for use on the below models:
- Avalon Perfect Fit - Single Door Flush Wood Plus 2011-2017
- Lopi Cape Cod - Single Door Flush Wood Plus 2011-2018
- Lopi Declaration - Single Door Flush Wood Plus 2011-2019
- FPX 33 Elite - Single Door Flush Wood Plus 2011-2019
Double Door Models of the above units use the 98900242 Air Tube Kit: Flush Wood Insert Air Tube Kit

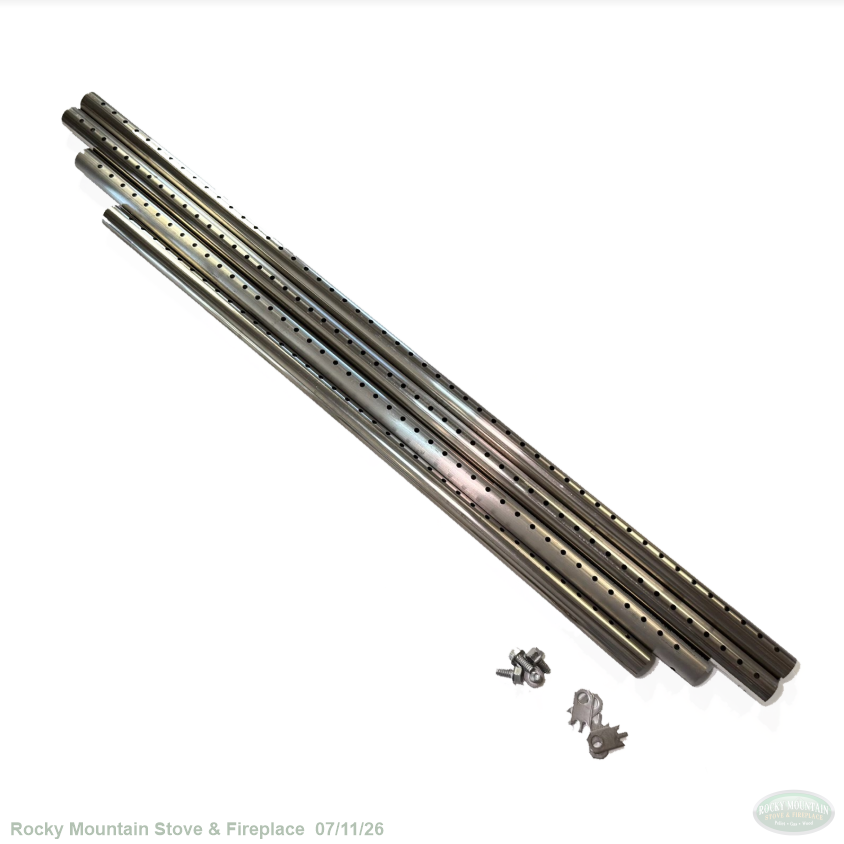

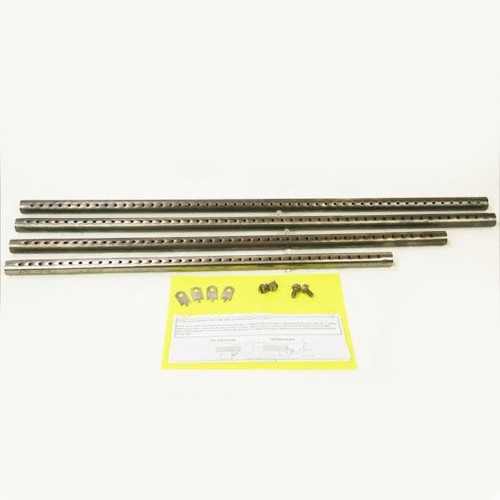

Includes:
- (4)STAINLESS STEEL AIR TUBES,
- (4)16GA,STAINLESS STEEL CLIPS,
- (4)SCREWS, STAINLESS STEEL (HWH SWAG,1/4-20x1/2)

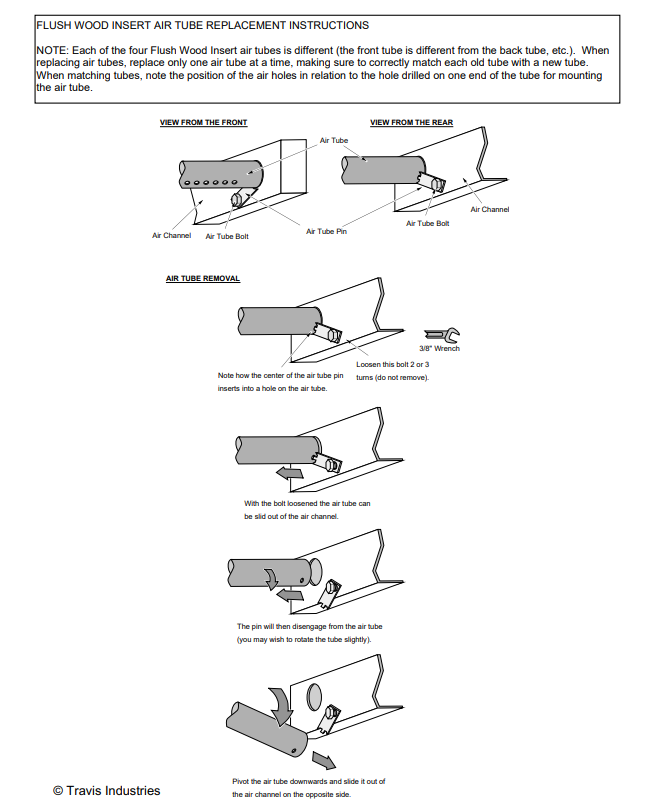

NOTE: Each of the four Flush Wood Insert air tubes is different (the front tube is different from the back tube, etc.). When replacing air tubes, replace only one air tube at a time, making sure to correctly match each old tube with a new tube. When matching tubes, note the position of the air holes in relation to the hole drilled on one end of the tube for mounting the air tube.
