Avalon & Lopi 98900232 Airtube Kit

Product Description

Avalon / Lopi  Wood Stove  -  98900232 Stainless Steel Air-tube Kit

98900232 AirTube Kit, OEM Factory Part

For use on the below models:

• Avalon 1250 Spokane    2006-2016
• Avalon Camino              2010-2014
• Lopi 1250 Republic        2006-2019
• Lopi Answer NT            1994-2004
• Lopi Answer                   2004-2019
• Lopi Answer Insert       2004-2019
• Lopi Parlor                      2004-2008
• Lopi Patriot                     2001-2006

Includes:

• 3 - front/center/rear 16-7/8" long secondary air-tubes
• 3 - 1" retaining sleeve (#100-11001)
• 6 - 1/4" roll pins #98900357

Instruction:

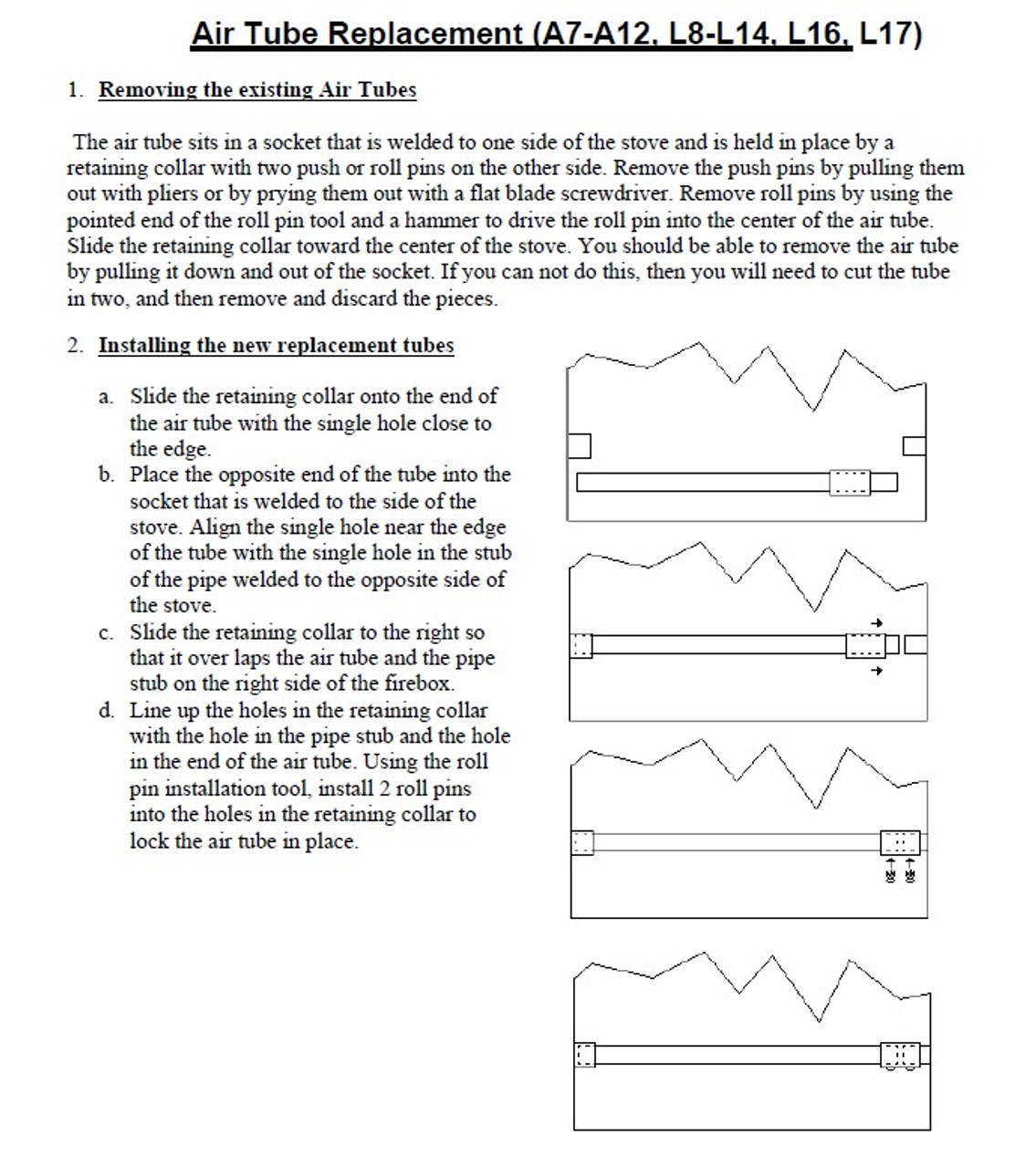

1. Removing the existing Air Tubes
The air tube sits in a socket that is welded to one side of the stove and is held in place by a retaining collar with two push or roll pins on the other side. Remove the push pins by pulling them out with pliers or by prying them out with a flat blade screwdriver. Remove roll pins by using the pointed end of the roll pin tool and a hammer to drive the roll pin into the center of the air tube. Slide the retaining collar toward the center of the stove. You should be able to remove the air tube by pulling it down and out of the socket. If you cannot do this, then you will need to cut the tube in two, and then remove and discard the pieces.
2. Installing the new replacement tubes a. Slide the retaining collar onto the end of the air tube with the single hole close to the edge.
b. Place the opposite end of the tube into the socket that is welded to the side of the stove. Align the single hole near the edge of the tube with the single hole in the stub of the pipe welded to the opposite side of the stove.
c. Slide the retaining collar to the right so that it overlaps the air tube and the pipe stub on the right side of the firebox.

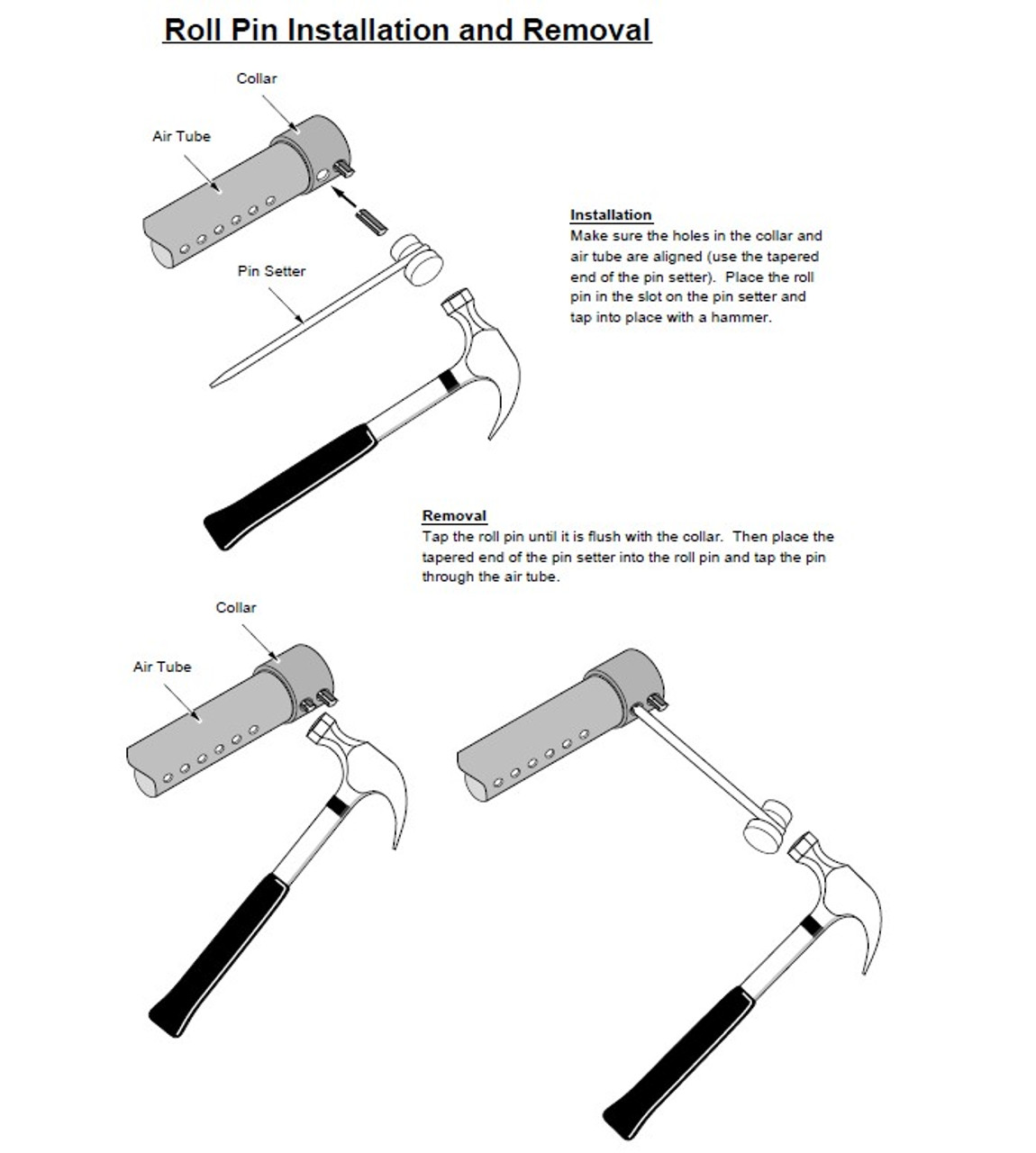

d. Line up the holes in the retaining collar with the hole in the pipe stub and the hole in the end of the air tube. Using the roll pin installation tool, install 2 roll pins into the holes in the retaining collar to lock the air tube in place.
